Automatic Multi Lane 10 Lane 3 Side Sealing Sachet Instant Freeze Dried 3 in 1 Coffee Packaging Machine

Automatic Multi Lane 10 Lane 3 Side Sealing Sachet Instant Freeze Dried 3 in 1 Coffee Packaging Machine

Description

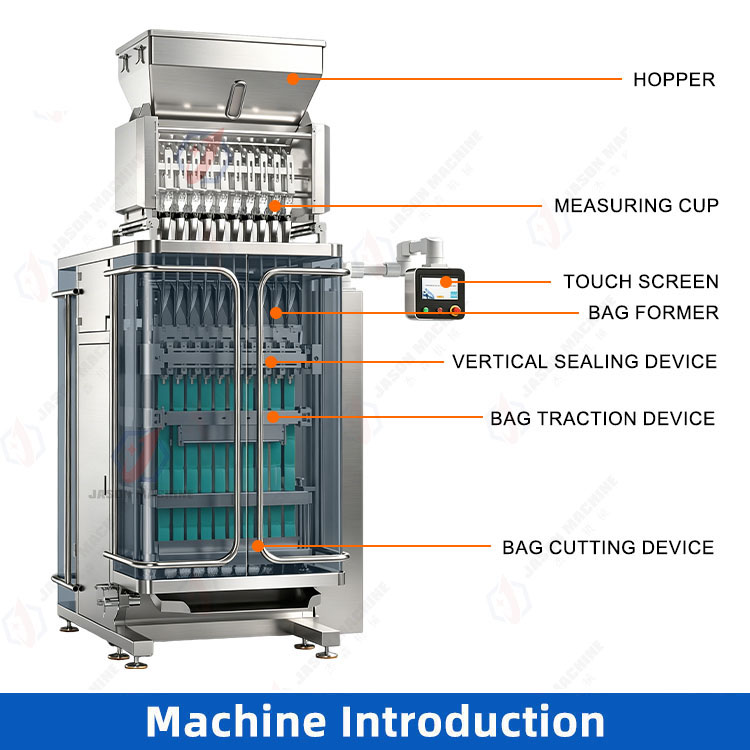

The automatic 10 lane multi track granule packing machine combines film slitting, sachet forming, measuring cup dosing, filling, sealing and cutting to produce three side seal sachets. Designed for suitable dry, free flowing granules, the machine can be configured for sugar, salt, granular pepper, granulated sweeteners, suitable 3 in 1 coffee blends, freeze dried coffee, instant tea granules, suitable herbal tea particles, instant oat, chia seeds, sesame seeds, seasoning and granular desiccants.

Customized measuring cups, polished bag former and servo assisted film pulling support consistent portions and neat sachet presentation in a vertical packaging process. The lane number and production capacity can be tailored to your requirements, with options for integration into a complete carton and case packing line.

Specification

Main Feature

1. Customizable Lane Configuration: The featured machine uses four lanes, while the lane number and production capacity can be customized to match your output requirements. Plan your packaging setup around your product, sachet dimensions and production needs.

2. Product Specific Cup Dosing: Measuring cups are customized for your granules and target filling quantity to support consistent portions. Final dosing performance is confirmed through product sample testing.

3. Convenient Film Handling: The rear mounted film holder simplifies roll replacement, while automatic film slitting produces smooth cuts for multi lane sachet forming. This arrangement makes routine film handling more convenient.

4. Smooth Forming and Film Pulling: Specially polished bag former help protect the packaging film from scratches. Servo assisted film pulling supports smooth film movement and a neat sachet appearance.

5. Film Matched Sealing Temperature: Sealing temperature can be adjusted according to the packaging film material, helping match sealing conditions to the selected film for three side seal sachet production.

6. Stable Machine Construction: The redesigned frame supports smoother operation, while branded electrical components contribute to machine reliability and durability. Together, they provide a dependable foundation for routine production.
