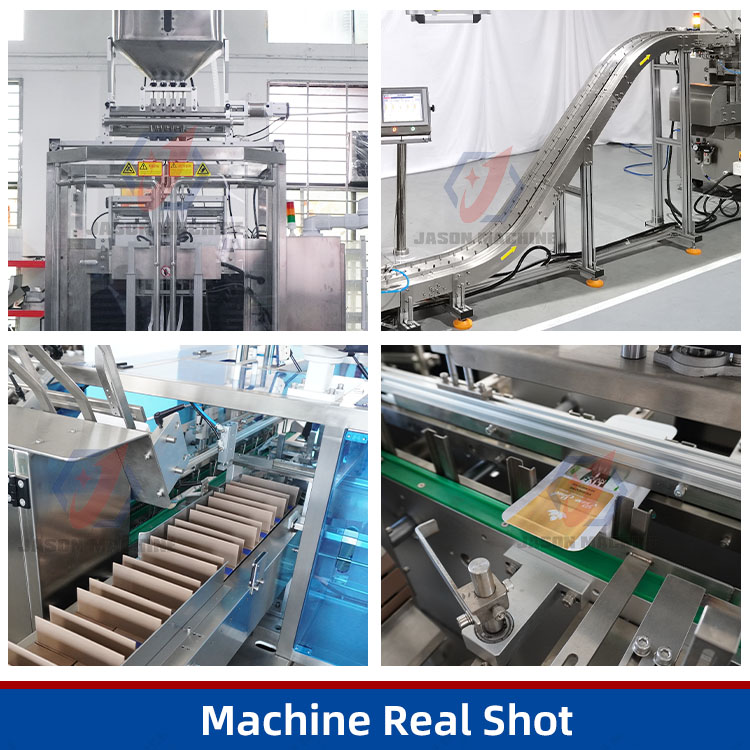

The automatic multilane granule sachet box packing machine is an automated system that efficiently integrates granule filling, sachet forming, counting, and cartoning to achieve high-speed, precise, and continuous packaging.
Item No :
JS-420MOrder(MOQ) :
1Payment :
L/C, D/P, D/A, T/T, Cash.Product Origin :
Guangdong, ChinaShipping Port :
Guangzhou Port / Shenzhen PortWeight :
1450KGAutomatic Multi-lane Salt Sugar Stick Sachet Plastic Paper Carton Box Packing Machine
Description

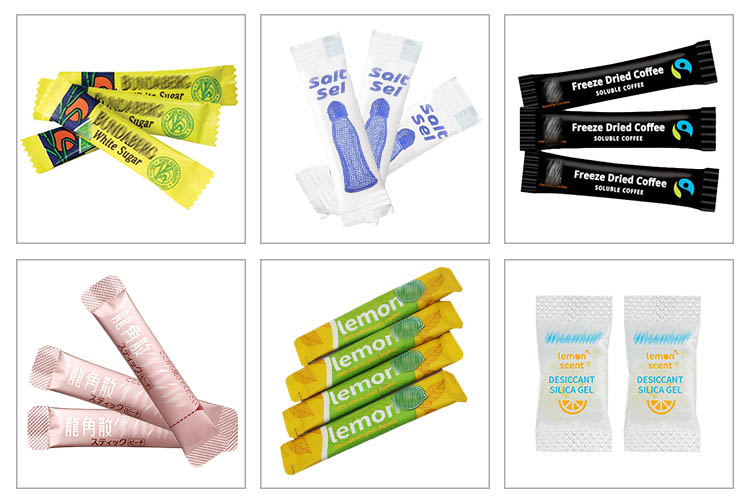

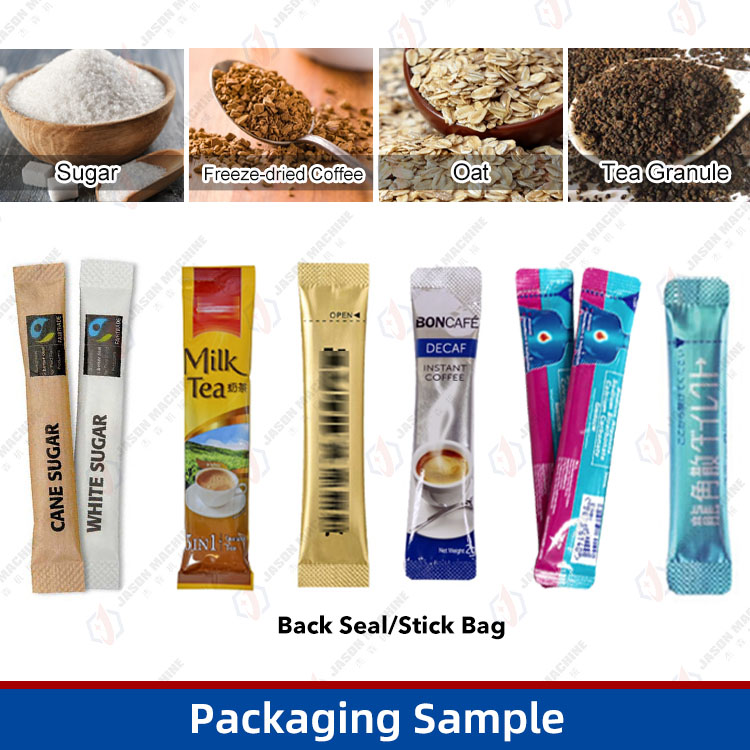

The multi-lane granule stick sachet packing machine is suitable for packing granule product, such as sugar, salt, pepper, sesame, seeds, grains, edible particles, 3 in 1 coffee powder, oatmeal, desiccant, washing powder and more. It can be used for packing back seal bag, round corner stick bag, irregular shaped stick bag.

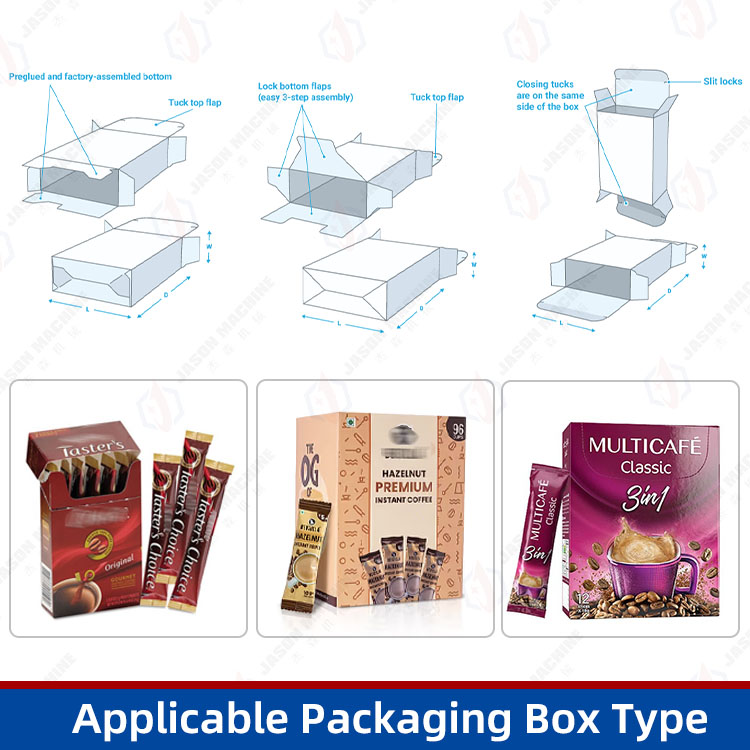

The box packing machine is suitable for a wide range of carton types, including tuck-in cartons (straight tuck end and reverse tuck end), glue-sealed cartons, and lock-bottom cartons. It can handle cartons made of paperboard with different thicknesses and structures, ensuring stable forming and precise loading.
Specification
| Multi Lane Granule Packing Machine | |
| Lane Number | 6-8 Lanes (customizable) |
| Filling Speed | 20-40 cycle/min |
| Measuring Range | 5-50g (customizable) |
| Film Width | Max.600mm |
| Bag Length |
75-150mm |
| Bag Width | 25-45mm |
| Bag Type | stick bag, round corner stick bag, irregular shape stick bag |
| Machine Size | 900(L)*1575(W)*1950(H)mm |
| Voltage | 220V, 50/60HZ |
| Power | 5KW |
| Machine Weight | 650KG |
| Automatic Box Packing Machine | |||
| Type | 180 | 230 | 330 |
| Carton Length | 80-180mm | 130-230mm | 150-330mm |
| Carton Width | 40-92mm | 50-200mm | 80-200mm |
| Carton Height | 20-60mm | 20-90mm | 40-110mm |
| Paper Requirements | 250-400 | ||
| Packing Speed | 15-100 boxs/min | 15-60 boxs/min | 15-50 boxs/min |
| Use Air Supply | 0.5-0.7Mpa | ||
| Air Consumption | 5-60L/min | ||
| Power | 220V, 50Hz, 0.75 KW | ||
| Machine Size | 2430(L)*1370(W)*1550(H)mm | 3276(L)*1420(W)*1580(H)mm | 3350(L)*1530(W)*1580(H)mm |
| Machine Weight | 800KG | 1000KG | 1200KG |
Main Feature
1.Customizable production capacity allows the entire line to match different output requirements, making it suitable for both small-scale startups and large-volume industrial manufacturing.
2.Equipped with an accurate metering system designed for granular materials, ensuring stable dosing performance and consistent product weight.
3.Advanced automatic film slitting system ensures clean and smooth cutting, improving sachet appearance while reducing material waste and ensuring consistent packaging quality.
4.Equipped with internationally recognized brand electrical components, the system guarantees long-term reliability, stable performance, and reduced risk of unexpected downtime.
5.Servo-driven film pulling system ensures precise and smooth bag movement, improving sealing quality and maintaining consistent sachet length across all lanes.
6.Multi-lane design significantly increases output efficiency by producing multiple sachets simultaneously, making it ideal for high-demand granule packaging applications.
7.The cartoning machine integrates carton erecting, loading, folding, and sealing into one compact system, streamlining the secondary packaging process.
8.Constructed with high-quality stainless steel and aluminum, the machine ensures durability, corrosion resistance, and compliance with hygiene standards.
9.Automatic detection system prevents empty cartons from being sealed, ensuring product quality and avoiding unnecessary packaging costs.
10.Flexible carton compatibility allows handling of various carton types and sizes, meeting different retail packaging requirements.
